Any optical trace file, such as those that are acquired and/or exported from chromatography systems like Chromeleon, Empower CDS, etc, can be added to Byos projects in CSV or TXT file format. In fact, any 2 dimensional data may be added easily to Intact or Chromatogram based workflows.

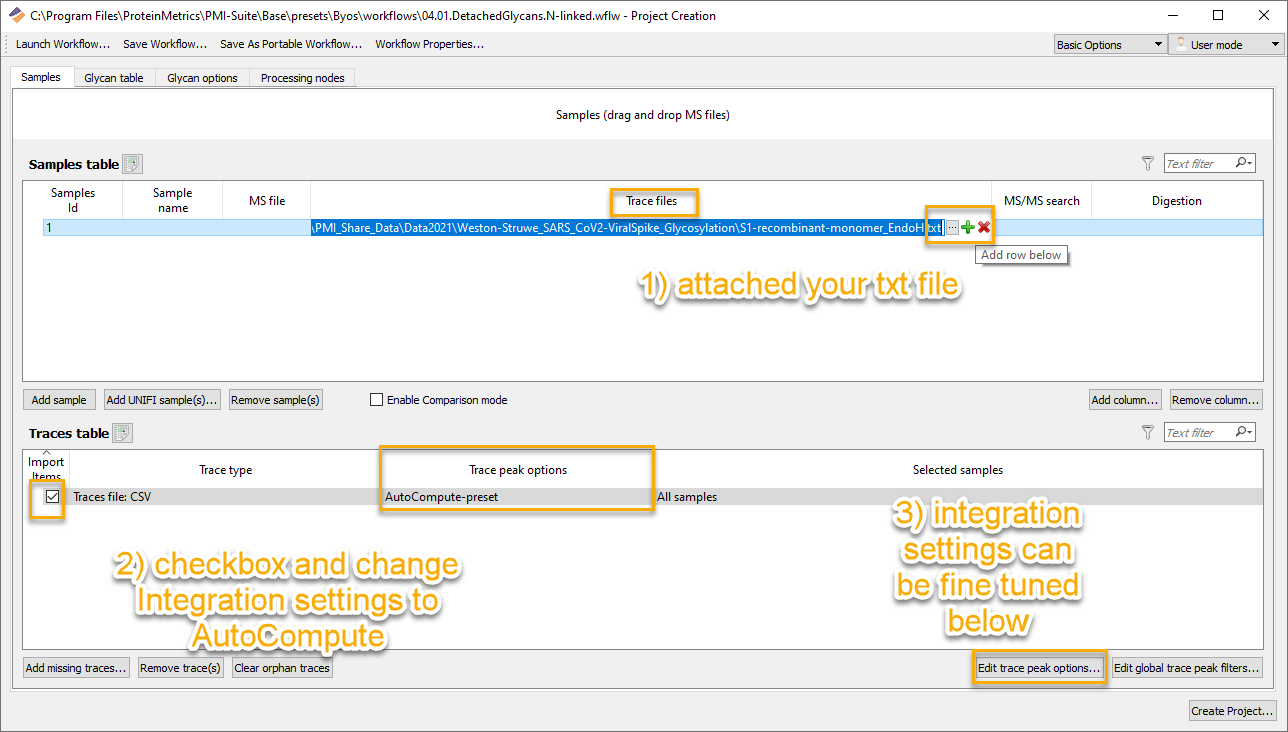

1) Under the Samples tab / Trace files column , double click and open the browser to attach your csv file.
2) The csv file is imported and displayed under the Traces table section. You can check Import item to use integration peak options.
3) Edit Trace peak option to fine tune the integration method if desired.
NOTE:
- CSV file format: 2 defined columns corresponding to the 2 dimensions (e.g.:first column for time; second column for absorbance)
- TXT file format: values can be coma separated
